LCD Cat5 KVM Switch

Model No:SKL-1532-17
Sunbox SKL-1532-17 LCD KVM Switch integrated with 17" LCD monitor and keyboard with built-in touchpad in an 1u housing. The KVM switch connects up to 32 computers through cat5 cable and utilizes KVM CIM Adapter for the final linkup
  • Features & Spec.

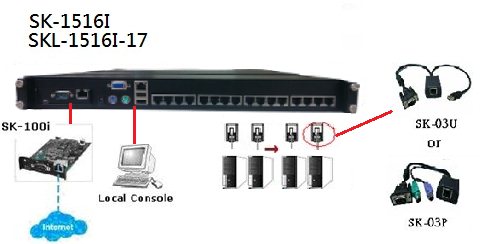

  • Diagram
  • PDF

Features

  • Integrated KVM console with 17" LCD monitor in a single Rail housing
  • Controls up to 32 computers
  • Utilizes RJ-45 connectors and Cat 5e/6 cables to link computers
  • Supports PS/2 or USB computer types
  • Computer ports selection by OSD or hotkeys
  • Operation in 1U of rack space
  • Provides an extra console port - USB & PS/2 keyboard, USB & PS/2 mouse
  • Supports external USB mouse
  • Casecade chain up to 32 additional KVM switches to control more computers
  • Supports the video resolutions up to 1600x1200@60Hz within 40 meters distance
  • Able to add an IP control card to be an IP KVM switch

Specifications

Model no.

SKL-1532-17

TFT-LCD 17" LCD KVM 17" 16-port LCD KVM
Resolution 1280x1024@85Hz
Display Color 16.7 M
Contrast 1000:1
Luminance 300cd/㎡
Viewing Angle H- 89°/89°(178°) , V- 89°/89(178
Pixel 0.264 * 0.264
Console Port VGA D-SUB 15pin, DDC (Display Data Channel) & DDC2B
Keyboard PS/2 105 keys (built-in),  USB*1 (2nd Console)
Mouse PS/2 Touchpad *1, USB Mouse *1 (2nd Console)
Computer Interface PS/2 or USB Cat5 Module
Auto-Scan 3 /8 /15/ 30 sec.
Distance to PC 40 meters (max.)
Selection PC OSD, Hot-Keys
Power Supply AC 100~240V input, 50/60Hz, Power Adapter*1
Dimension 450*580*42mm (WLH),  19" rack/ 1u
Weight about 16 KGS
Accessory AC Adapter*1pcs ,  Rackmount kit * 1 set
Options SK-03P  PS/2 Cat5  PC Module
SK-03U  USB Cat5  PC Module
SK-100I : IP KVM Card



SKL-1532-17

Data Sheet
