PS/2 KVM Switch

Model No:SK-221
SK-221 2-Port VGA PS/2 Slim KVM Switch, is a very slim and compact KVM Switch that is specifically designed for individual and SOHO use. You can use it to control two computers using only one keyboard, video and mouse
  • Features & Spec.

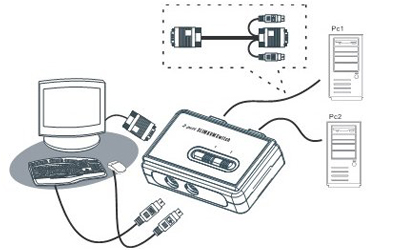

  • Diagram
  • Packages

Features

  • 2-Port VGA PS/2 Slim KVM Switch
  • Hot-plugging PCs for maintenance without powering down the KVM Switch or PCs
  • Channel selection by keyboard hotkeys and face-panel push buttons
  • Autoscan delay time programmable
  • LED indicators for PC port status
  • High VGA resolution 2048 x 1536
  • PS/2 bus powered

Specifications

Model no. SK-221
Computers  2
Console Connections 1
PC Port Connectors 2 x HDB 15-pin female (integrated with PS/2 interface)
Console Port Connectors 1 x PS/2 Keyboard 6-pin Mini Din female
1 x PS/2 Mouse 6 pin Mini Din female
1x HDB 15-pin female
PC selection Push button、 Hot-keys
PC port LED 2 (Green)
VGA Resolution 2048 x 1536
Power Type PS/2 interface power
Housing Plastic
Dimension (L x W x H) 96 x 61 x 24 mm
Safety / Emission FCC, CE



  1. SK-221
  2. 1.2M PS/2 Cable x 2 sets
  3. User menu
