Cat5 IP KVM Switch

Model No：SK-1516I
This 16-port CAT5 KVM switch allows user to control any of the 16 connected computers via a local USB (or PS/2) console or by remote IP access. Utilizing CAT5e/CAT6 cables as carriers of KVM signals. Both PS/2 and USB interface are supported by this model for console and computer connection
  • Features & Spec.

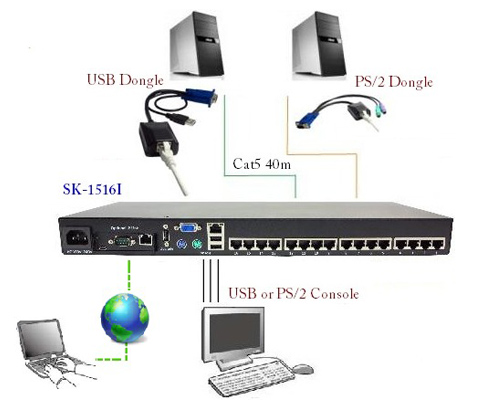

  • Diagram
  • PDF

Features

  • 1-Local Console & 1-Remote IP Console 16-port CAT5 Combo KVM switch
  • Each server can be extending 130 feet (40 meters) away from this KVM Switch by CAT5 UTP cable
  • Remote KVM (keyboard, video, and mouse) access over IP
  • Built-in an IP module card, with Raritan chipset solution
  • Consoles your Keyboard / Mouse via PS/2 and/or USB at will
  • Connects computers via PS/2 and/or USB at will by CAT.5 Combo Dongle
  • Full control under all OS, in BIOS level, during boot, or at Blue Screens
  • Supports cascade chain with 3 level cascades
  • Emulates PS/2 or USB keyboard on each PC
  • Supports hot-pluggable
  • Supports 3 types of switching: Front Push Buttons switch 、Hot-Keys、Menu driven OSD
  • Supports Auto-Scan function to switch video inputs automatically
  • Supports Beeper during Switching enabled
  • Fully compliant with the USB 1.1/ 2.0 specification
  • Rack Mountable in 19”1U
  • Remote control over Java-enabled Browsers
  • SSL Secure access through certificate authentication and data encryption
  • 256-bit SSL encryption of all transmitted data
  • Persistent logging of all important events
  • Up to 63 users profile with definable, three categories users authorized levels
  • Auto-optimize the frame rate and video quality according to the bandwidth
  • Automatically senses video resolution for best possible screen capture
  • KVM firmware is upgradeable via on-board USB download connector


Specifications

Model no. SK-1516I
Computers 16
PC Selection 16* Pushbutton Switch、Hot- Keys、OSD
Distance 130 feet max.
Console Interface USB+PS/2 Keyboard， USB+PS/2 Mouse，VGA
PC Connector 16* RJ45
Firmware Up-date 1* USB-A
IP card Slot 1* IP Slot (built-in SK-100I)
Remote Console 1*RJ45
Auto-Scan 5/ 10/ 20/ 30 Sec.
Video Resolution 1600x1200 max., DDC2B
Power Source AC 100~240V, 50/ 60 Hz
LED 16*LEDs ( Select + Online)
Size 440*180*44mm
Weight 3100g
Accessories 1U Rack Panel  *1
AC Power cable *1
Optional Parts SK-03U USB PC module，SK-03P PS/2 PC module
