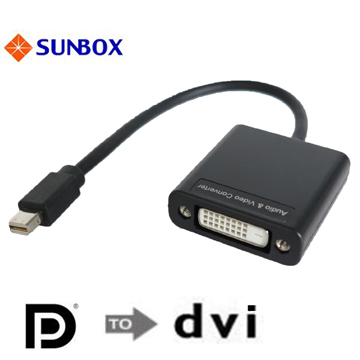

mini DisplayPort to DVI
Model No：VC-210DD
MAC mini DisplayPort (MDP) to DVI converter with 15cm cable
- Features & Spec.
Features
- MAC mini DisplayPort (MDP) to DVI female with 15cm cable
- Integrates 1-to-1 MDP & HDMI / DVI Level Shifter.
- Compliant with DisplayPort 1.1
- Integrated 50 Ohm termination resistors for AC coupled differential inputs
- Low Intra-pair and Intra-pair skews
- Supports full DisplayPort link training
- Supports DVI V1.0 Level Shifting
- Supports DisplayPort all 4 levels of output
- AC coupled TMDS level shifting operation up to 2.5 Gbit/s per lane (250 Mhz character clock)
- Integrated DDC Level Shifter (3.3 V source side to 5V sink side and vice versa
- DDC Support up 400kHZ clock frequency
- Integrated DDC buffer
- With HPD Level Sifting
- Power supply 3.3V (MDP 3.3V) / Power-saving mode by source-side
- ESD protection up to 3 KV
- Transparent operation : no re-timing or software configuration required
- Complable HDMI port of TV / Monitor
- Easy to install , Plug & Play, Powers free
- Connector : MDP 15CM Cable + PCB BODY + DVI-F
Specificatons
| Model no. | VC-210DD |
| Input Connector | 1* mini DisplayPort (MDP) male |
| Output Connector | 1* DVI (24+1) female |
| Input Cable | 15 cm |
| Working Temperature | 0°C~45°C |
| Material | Plastic / Black |
| Weight | 48g |
| Size | 46 x 48 x 15 mm ( LWH) |
| Power | None Power |
