DVI CAT5 Extender
Model No：VDE-100
DVI Extra Long Range CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV display up to 100 meters at 1920x1200。 With high quality uncompressed video to delivers significant value to the entire home and commercial entertainment system
- Features & Spec.

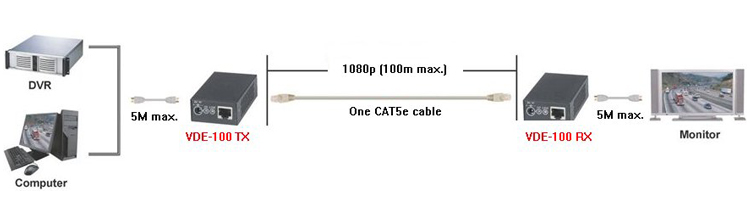

- Diagram
- Packages
- PDF
Features
- Extends DVI Signal over one CAT5/5e/6 cable
- Uncompressed high definition video up to 1920x1200@60Hz and 3D capable
- Max. Data Rate- 10.2Gbps
- HDMI 1.3 and HDCP compliance
- Transmission range up to 100 meters at 1920x1200 resolution
Specifications
| Model no. | VDE-100 | |
| Item no. |
VDE-100Tx
|
VDE-100Rx
|
| Resolution |
1920 x 1200@60Hz@48bits at 100meters
|
|
| DVI Connector |
DVI-I (Digital only)
|
DVI-I (Digital only) |
| Device to Device |
RJ-45 Shielded
|
RJ-45 Shielded |
| LAN Cable | CAT5/5e/6 | |
| Power Consumption |
600mA / max.
|
1,200mA / max. |
| Power Source | DC5V 2A | DC5V 2A |
| Environments | Operation: 0 to 55℃ | |
| Storage: -20 to 85℃ | ||
| Humidity: up to 95% | ||
| Size ( mm ) |
49x92x25mm
|
49x92x25mm
|
| Weight / g |
130g
|
140g
|
- VDE-100 TX
- VDE-100 RX
- DC5V 2A Power Adapter x 2pcs
- User Manual
VDE-100
User Manual
