VGA to DVI Converter

Model No:VC-100VD
Convert any VGA video into perfect DVI video signal output
  • Features & Spec.

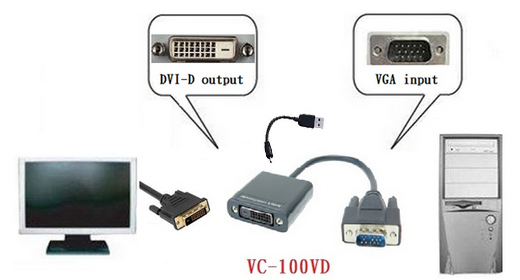

  • Diagram
  • Packages
  • PDF

Features

  • Convert  VGA signal into DVI-D output
  • Convert  Analog PC/RGB signal into  Digital DVI 1.0
  • DVI-D Connector output with 15CM Cable
  • Can work with DVI to HDMI adapter,supports HDMI 1.3a
  • Output resolutions up to 1920*1080@60Hz (FULL HD)
  • Supports  link speeds  up to 2.25Gbps (link clock rate of 225MHz)
  • Power source by DC5V 350mA
  • Plug and Play

Specifications

Model no.
VC-100VD
Input connector
1*HDB-15 male
Output connector 1*DVI-D female ( 24+1 )
Resolutions 640*480(@60/72/85Hz)、800*600(@56/60/72/75/85Hz )、1024*768(@60/70/75/85Hz)、1280*800(@60Hz)、1280*960(@60Hz)、1280*1024(@60/75/85Hz)、1360*768(@60Hz)、1440*900(@60Hz)、1600*1200(@60Hz)、1920*1080(@60Hz)、
Power Source DC5V
Power Consumpuion 350mA / 1.75W
Workiing tempertature 5 ~70°C
Storage tempertature -20~80°C
Size 54*46*15mm
Weight 60g



  1. VC-100VD
  2. DC5V Power adapter
  3. User manual
