HDMI KVM Switch
Model No：SK201H
The 2-port Compact Desktop HDMI USB KVM Switch allows you to control 2 HDMI-enabled multimedia computers with only one USB keyboard，mouse，monitor
- Features & Spec.

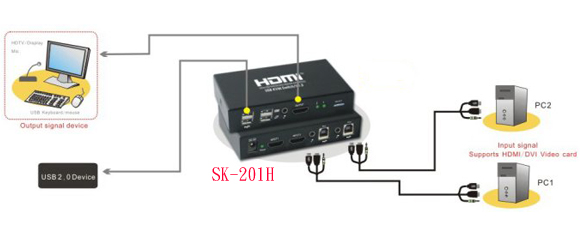

- Diagram
Features
- 2-port compact HDMI USB KVM switch
- KVM Console supports USB interface Keybaord and Mouse
- PC selection by Hotkeys and Push buttom switch
- Transmission between PC and KVM up to 45 feet (15 meters)
- Built-in 2.0 USB HUB 2-port for peripheral sharing
- Digital Video resolution up to 1920*1080、1920*1200(PC)
- Supports EDID
- Supports resolution up to 2.25Gbps
- Supports HDMI 1.3b and HDCP & DVI
- Supports Windows98SE、ME、2000、2003、XP、7、8 & Linux、Mac G3/G4/G5、iMAC ( with USB interface )
- LED indicates status
- FCC、 CE approved
Specifications
| model no. | SK201H |
| PC Connectors | 2*HDMI |
| 2*USB (B female) | |
| 2*3.5mm Phone Jack (female) | |
| Console Connectors | 1* HDMI |
| 1* USB K/B 、1* USB Mouse & 2* USB 2.0 HUB | |
| 1* 3.5mm Phone Jack (female) | |
| PC SELECT | 2*Push buttom 、Hot-keys |
| VIDEO Resolution | 1920*1080(Full HD)、1920 x 1200 (PC) |
| Power Adapter | DC5V/ 1A |
| LED | 2 |
| Working Temperature | 0 ~ 40°C |
| Weight | 200g |
| Size | 121 x 73x 24mm |
