Products> Video Products > HDMI
HDMI Splitter
Model No：VHS-142B

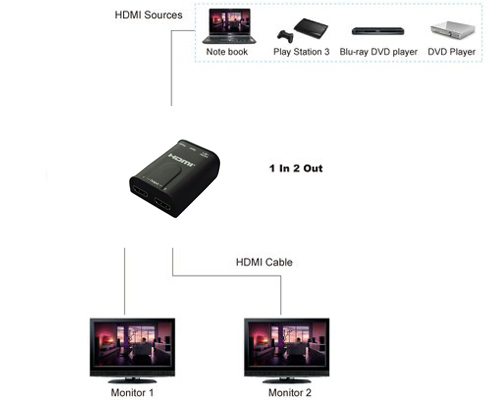

This device allows you to distribute single HDMI signal from sources like blue-ray DVD players、play station 3 and other HDTV devices to multiple HDMI display simultaneously。 Supports HDCP compliant devices and works on simple plug and play functional
- Features & Spec.
- Diagram
- Packages
- PDF
Features
- Maintains high resolution video up to 1080p
- Supports 48-bit color depth，Full 3D and 4K2K video
- Supports 480i、480p、576i、720p、1080i、1080p and 4K2K
- Supports HDMI v1.4、ARC、DVI 1.0、HDCP1.1 and EDID
- HDCP compliant and supports HEC ( Option )
Specifications
| model no. | VHS-142B | |
| HDMI Input | 1* HDMI A (19-pin) Female | |
| HDMI Spec. | HDMI V1.4 | |
| HDMI Output | 2* HDMI A (19-pin) Female | |
| HDTV Resolution | 480p, 576i, 720p, 1080i, 1080p, 4K2K | |
| Resolution | 4K2K max. | |
| Bandwidth | 340MHz/ 10.2Gbps | |
| Cable Dintance | IN | 6.5FT. max. |
| OUT | 50FT. max. ( By AWG#24Cable ) | |
| LED | 1*Power | |
| Size | 65*44*23 mm (W*D*H) | |
| Power source | DC5V 0.5A | |
- VHS-142B
- 1.5m USB power cable
- Optional DC 5V 1A power adapter
VHS-142B
Data Sheet
