USB KVM Switch
Model No：SK-1716T
16-port USB PS/2 Rackmount KVM Switch that offers 2 x transparent USB 2.0 device ports for easy sharing of high speed USB devices such as rescue disks or storage hard disks, etc。 The Transparent USB feature allows the server admins to perform server rescue task using the USB hard disks connected via the transparent USB device ports. It can add more flexibility and value to maximize your USB resources sharing among many servers/computers。 A maximum of 16 units can be tree-chained to provide a total maximum port capacity of up to 256 PCs (16 x 16)。Tree-chaining distance can be up to a total of 10 meters
- Features & Spec.

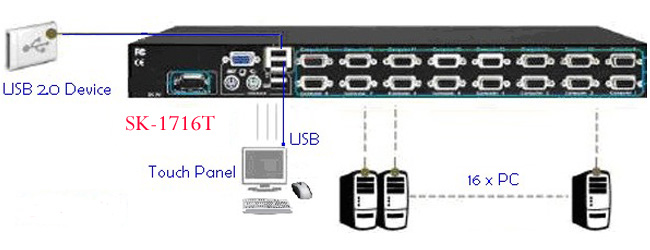

- Diagram
Features
- 16-port 19" Tree-chainaable Rackmount USB PS/2 KVM switch with OSD
- 2 x Transparent USB 2.0 device ports for server rescue task or simple device sharing
- Supports Touch panel ( by USB ) operation
- Tree-chainable up to16 units using daisy-chain cable
- Tree-chain distance up to 10M
- USB and PS/2 interface support on both console and PC side
- High VGA resolution 2048 x 1536
- Firmware upgradable
Specifications
| SPEC. | SK-1716T |
| Computers | 16* ( USB or PS/2 ) |
| PC Selections | 16*Push buttom switch ; Hot Keys ; OSD |
| Console Port | 1* USB KBD & 1*USB MOUSE |
| 1* PS/2 KBD & 1*PS/2 MOUSE | |
| 1*VGA | |
| 2*USB 2.0 | |
| 1*Daisy Chain-IN, 1*Daisy Chain-OUT | |
| Auto-Scan | 5 ~95 Sec. |
| KVM Chain Distance | 2pcs within 4 meters; total in 30 meters |
| Video Resoultion | 2048x1536 max. |
| Powe Source | DC9V/ 2A Power Adapter |
| LEDs | 16 |
| Size | 410*165*44.5mm |
| Accessories |
1U Rack Panel *1 DC9V 1A Power Adapter *1 1.8M /3M /5M PS/2 + USB Cable (options) |
