DVI KVM Switch
Model No：SK401D
SK401D is a 4-port Slim Palmtop USB KVM Switch with audio and microphone switching function。 Allows you to access, control，boot and reboot 4 DVI-enabled USB multimedia computers。 The independent audio/mic switching function allows an uninterrupted audio experience on a same connected computer even when you switch to another computer。
- Features & Spec.

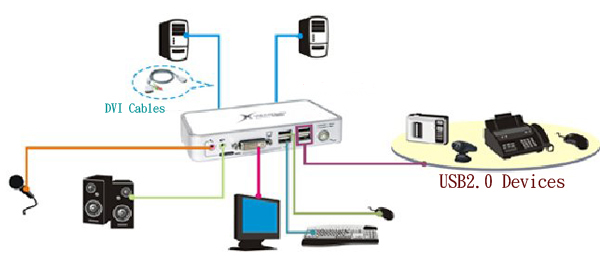

- Diagram
Features
- 4-port Compact Desktop DVI USB KVM Switch with Audio & Mic and 2 extra USB 2.0 device ports
- True Transparent USB (TTU) Emulation technology with an integrated ASIC
- Full driver support for all types of USB keyboard and mouse
- All time DDC emulation for video compatibility and stability under intensive switching
- TMDS and HDCP specifications complaint
- Audio and Microphone switching for uninterrupted multimedia experience across multiplatforms.
- USB 2.0 specification compliant
- Independent/simultaneous switching of both PC and audio/mic channel
- Multiplatform support for PCs and Macintosh
- User definable hotkeys
- Channel selection by push button and keyboard hotkeys
- LED indicators for easy status monitoring
- DVI Digital video resolution 1920 x 1200 / Analog video resolution 2048 x 1536
- USB interface power with optional DC 5V2A external power adapter
- Low power consumption using ASIC
Specifications
| Spec. | SK401D |
| Computer Port |
4*DVI-I (with Audio&Mic.) 4*USB (Type B) |
| Console Port | 1* USB K/B & 1*USB MOUSE |
| 1*DVI-I (29pin) | |
| 2*Audio/Mic.(3.5mm) | |
| 2 x USB 2.0 Type A female | |
| PC Selection | 4* Push buttom switch / Hot-keys/ Wired remote controller ( 0ption ) |
| VIDEO Resolution | 1920 x 1200 (digital) / 2048 x 1536 (analog) |
| Power Source | Power Adapter DC5V/3A |
| LEDs | 4 |
| Working Temperature | 0 ~ 40°C |
| Weight | 450g |
| Size | 262x100x45mm / LWH |
