DVI KVM Switch

Model No：SK-1708D
The SK-1708D is a rackmountable KVM switch with the DVI video interface。 User can manage multimedia computers via this unique KVM switch with its simplicity。 The SK-1708D can fully control 8 PCs from a single keyboard，mouse and monitor console. It also provides multimedia keyboard plus audible support. It can connect to each of the computers audio input and output through the microphone and the set of speakers one at a time
  • Features & Spec.

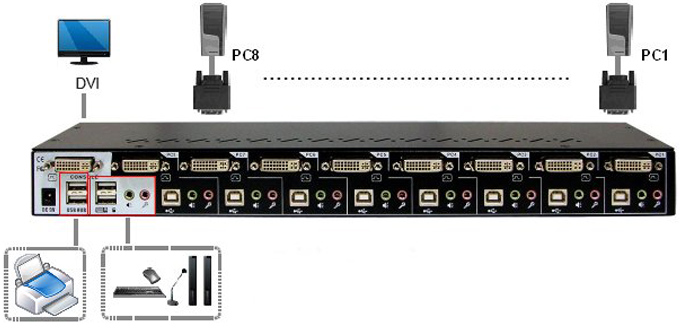

  • Diagram
  • Packages

Features

  • 8-port Monitor DVI KVM switch w/ audio & mic
  • Support DVI-D interface Monitor/Flat Panel Display displays
  • Audio & microphone switching
  • 2 x USB 2.0 hub ports
  • User-configurable simultaneous/independent switching of audio/hub pots/PC ports
  • DVI-I Single Link interface technology supports digital and analog video signal transmission
  • TMDS specifications compliant
  • VESA DDC2B emulation
  • HDCP specifications compliant
  • Resolution support up to 2048 x 1536 (analog) / 1920 x 1200 (digital)
  • USB style keyboard and mouse control
  • Channel selection and operation using front-panel push button and keyboard hotkeys
  • Support for DOS, Windows 95/98/SE/ME/2000/XP/Vista, Linux, MacOS, etc.
  • Status LED display for easy port status monitoring
  • Buzzer sound for port switching confirmation
  • Metal enclosure for best shielding and protection

Specifications

SPEC. SK-1708D
PC Selection Push button switch*8 、Hot- Keys
PC Ports 8* DVI-D ( 24+5pin ) + USB+Audio+Mic.
Console Ports 1* DVI-D ( 24+5pin )  Female
1* USB Keyboard
1* USB Mouse
2* USB2.0 HUB
1*Audio +Mic. (3.5mm)
AUTO-SCAN Yes
VIDEO Resolution 2048x1536/ max.
Power Source DC9V/ 1A
LEDs 8
Size 406*100*44mm
Accessories 1U Rack Panel *1
DC9V 1A Power Adapter *1
1.8m DVI+ USB cable + Audio cable (options)



  1. SK-1708D
  2. 1U Rack Panel *1
  3. DC9V  Power Adapter *1
  4. PC Connection Cables Option
