DisplayPort to Dual DisplayPort Graphics Splitter

Model No:DPD2001
Combines two DisplayPort monitors as one display, at a maximum resolution of 3840x1200, to make the ultimate wide screen desktop. This graphics expansion module can also clone your primary display and function as a 2 Port DisplayPort Video Splitter.
  • Features & Spec.

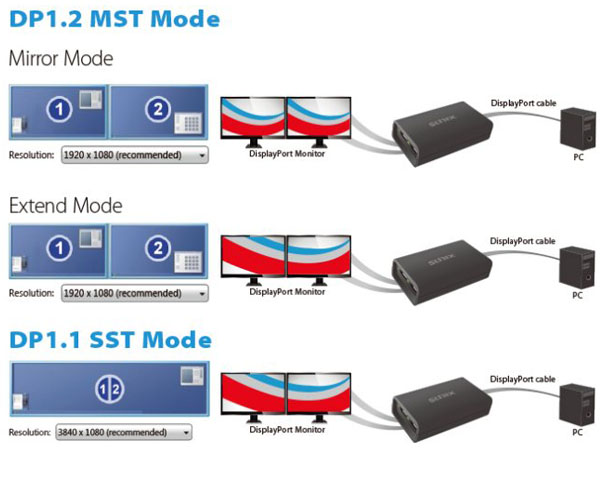

  • Diagram
  • Packages


  • Ideal for multi-display and TV-Wall application
  • Works with any desktop or notebook computer which has DisplayPort output connectivity
  • Enable 2 DisplayPort monitors working simultaneously with video mirror or extension mode
  • Fully HD compatible and provides full display performance with virtually zero latency
  • Compatible with DisplayPort™ v1.2 / 1.1a, VESA DDM, and EDID v1.4 Standards
  • Supports exceptional Secured Content Protection with HDCP 1.3 for digital content
  • DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
  • Supports kinds of DisplayPort video dongles converting to HDMI, DVI, or VGA output connectivity
  • Driver Free, Plug & Play without configuration
  • Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS
  • Supports O/S: Windows XP/2003/Vista/7/2008/8/8.1 (32/64-bit)


  1. DisplayPort to Dual DisplayPort Graphics Splitter x1
  2. Quick Installation Guide
  3. DisplayPort Male to DisplayPort Male cable 200mm (8.0 ft.) x 1 (Optional)
  4. Mini-DisplayPort Male to DisplayPort Male cable 100mm (4.0 ft.) x 1 (Optional)
