DisplayPort to Dual HDMI Graphics Splitter

Model No：DPH2001
Combines two HDMI monitors as one display, at a maximum resolution of 3840x1200, to make the ultimate wide screen desktop. This graphics expansion module can also clone your primary display and function as a 2 Port HDMI Video Splitter Compatible with a DisplayPort video card, Our DisplayPort to Dual HDMI graphics splitter dongle requires no software installation for multi-display applications, plug-n-play, simplifying configuration and saving time. It works for standard Microsoft Windows PC with DisplayPort connectivity
  • Features & Spec.

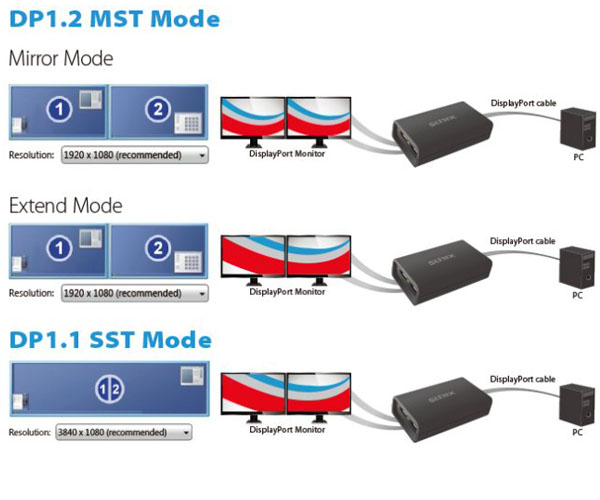

  • Diagram
  • Packages

Features

  • Ideal for multi-display and TV-Wall application
  • Works with any desktop or notebook computer which has DisplayPort output connectivity
  • Enable 2 HDMI monitors working simultaneously with video mirror or extension mode
  • Fully HD compatible and provides full display performance with virtually zero latency and no display application limitations
  • Compatible with DisplayPort v1.2 / 1.1a, HDMI™ v1.4b, VESA DDM, and EDID v1.4 Standards
  • Supports exceptional Secured Content Protection with HDCP 1.3 for digital content
  • DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
  • Supports kinds of HDMI video dongles converting to DVI or VGA output connectivity
  • Driver Free, Plug & Play without configuration
  • Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS
  • Supports O/S: Windows XP/2003/Vista/7/2008/8/8.1 (32/64-bit)

Specifications

  1. DisplayPort to Dual HDMI Graphics Splitter x 1
  2. Quick Installation Guide
  3.  (Optional) DisplayPort Male to DisplayPort Male cable 200mm (8.0 ft.) x 1
  4. Mini-DisplayPort Male to DisplayPort Male cable 100mm (4.0 ft.) x 1
