RS-232 PCIe MiniCard

Model No:MCS6456P
SUNIX MCS6456P, PCI Express serial communication board, allows users to add or expand four RS-232 COM ports on embedded PC system via full height Mini Card slot. Each RS-232 COM port supports +5 & 12VDC power output over COM 9th pin. It's convenient for users connecting RS-232 devices without addition external power supply
  • Features & Spec.

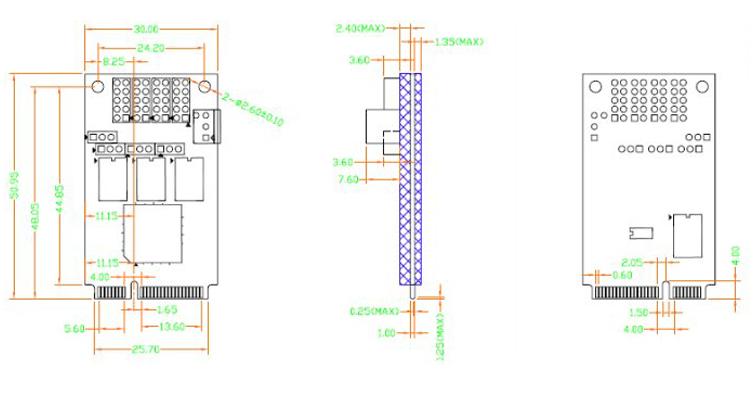

  • Diagram
  • PDF

Features

  • Expands 4 independent RS-232 serial ports with communication speeds up to 921.6Kbps
  • High speed SUNIX PCI Express SUN2410 16C950 compatible UART controller on-board
  • Support PCI Express Full-Mini Card Specification Revision 1.2
  • Each COM provides RS-232 serial ports with +5 & 12VDC power output via COM 9th pin
  • Build-in power socket to source efficient DC power from system
  • On-chip hardware auto flow control to guarantee no data loss
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard
  • Plug-n-Play, I/O address and IRQ assigned by BIOS
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval
  • Support Microsoft Windows, Linux, and DOS

Specifications



MCS6456P

Data sheet
