HDMI + USB KVM Cat5 Extender

Model No:SE-150HX
Extend HDMI, RS232, IR and USB signals over one CAT5E/CAT6 cable, perfect for control remote machines and security monitoring systems, digital signage application
  • Features & Spec.

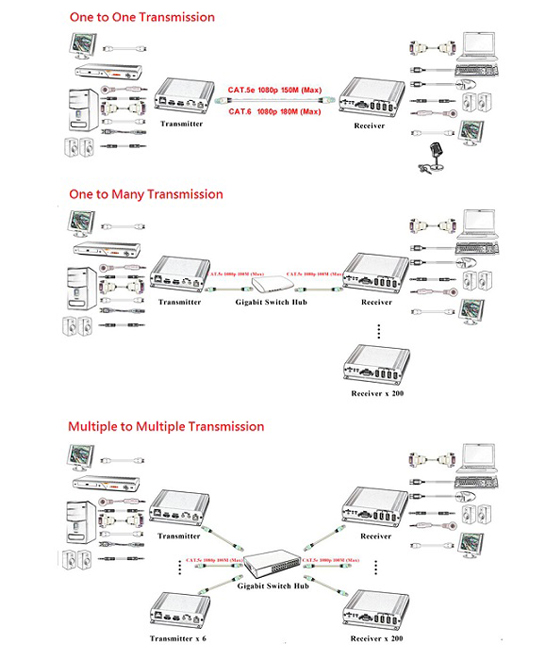

  • Diagram
  • PDF

FEATURES:

  • Extend HDMI, RS232, IR and USB signals over one CAT5E/CAT6 cable
  • Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) 32bpp@ 60 Hz
  • Transmission range up to 150M over CAT5e, 180M over CAT6
  • Supports 2-way RS232 commands at baud rate 115,200 (control software on a PC, or other automated control system hardware) to control devices attached to the matrix using RS232. Full Duplex data communication
  • Transmitter unit built in HDMI loop output
  • Receiver unit with 4 ports USB devices (1 port USB 1.1 & 3 Port USB 2.0), to extend USB peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
  • Support point to point and multiple source devices to multi-display connections via Gigabit network switch
  • Built in Bi-Directional analog audio
  • Built in Bi-Directional IR
  • Optional model:  Signal repeater for longer distance application


SPECIFICATIONS

Model no. SE-150HX
Spec. Local Device (TX) Remote Device (RX)
Connectors Monitor HDMI 19-female x 2 HDMI 19-female x 1
USB
USB B ( F ) x1 USB Type A x 4
RS232
DB9 (female) x 1 DB9 (male) x 1
Audio 3.5mm Phone Jack ( F ) x 2 3.5mm Phone Jack ( F ) x 2
IR 3.5 mm Phone Jack ( F ) x 1 3.5 mm Phone Jack ( F ) x 1
Device to Device
Input
 N/A  RJ-45 (FTP) x1
Output
 RJ-45 (FTP) x1  N/A
Resolution / max. 1920 x 1200p 32bpp@ 60 Hz
Connection Distance / max. 150 meters (by CAT.5e) / 180 meters (by CAT.6)
USB HUB   USB1.1 x1 + USB2.0 x3
IR Distance / max. 5 meters
Power Supply DC5V 2A DC5V 2A
Power Consumption 1.3A
Environments Working :0~55℃,Stroge :-20~85℃,Humidity:up to 95%
Size ( LxWxH ) 125 x 140 x 30mm 125 x 140 x 30mm
Weight 380g 380g



SE-150HX

Data Sheet
