LCD IP KVM

Model No：KVM-6508I-19
KVM-6508I-19 is a 8-port 19"LCD IP based KVM switch supporting both USB and PS/2 interfaces for computer connections. With the remote IP access function, server administrator can remotely login a thin-client software viewer for maintenance
  • Features & Spec.

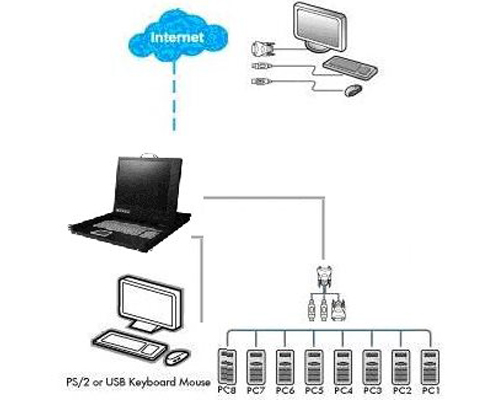

  • Diagram
  • Packages
  • PDF

Features

  • 8-port IP-based 19” LCD USB PS/2 KVM Switch
  • Provides remote control over IP
  • Raritan IP chipset insided
  • USB and PS/2 dual Interface support on PC side ( change cable )
  • Build-in 2nd console with USB  and PS/2 interface ports ( KVM Switch )
  • Operation and channel selection by front-panel buttons, keyboard hotkeys and OSD menu
  • Auto-scan mode for quick browsing of all connected computers
  • Total control over the remote server from BIOS level up to GUI applications
  • Ultra-security using full 1024-bit PKI Authentication / 256-bit SSL encryption
  • Work with LDAP / RADIUS / Active Directory Servers
  • Ethernet 10/100 and serial PPP server and client connections TCP/IP remote connection
  • SSL-encrypted Web Management Interface for all settings and upgrade/backup features Thin-client Viewer Program
  • IP remote control supports up to 1600 x 1200 @ 60 Hz resolution
  • 256-bit SSL Encryption for keyboard, mouse and video signal transmissions

Specifications

Spec. KVM-6508I-19
TFT-LCD LCD display area size 19 inch
Resolution 1280x1024@75Hz
Display Color 16.2M
Contrast 1000:1
Luminance 300cd/㎡
Pixel 0.294(H) x 0.294(V)
Console Port VGA D-SUB 15pin, DDC (Display Data Channel) & DDC2B
Keyboard PS/2, 105keys  (Built-in)，USB & PS/2  (Exteranl 2nd Console)
Mouse PS/2 touch panel (Built-in)，USB & PS/2  (Exteranl 2nd Console)
KVM Switch KVM-108I (8-port USB+PS/2  IP KVM Switch)
PC Selections OSD, Hot-Keys, 8 * Push buttom switch
IP Browser Supported IE6.0,  Netscape7.0, Mozilla.1.6 (or above)
IP Setting DHCP, Bootp, FixIP ( DDNS supported)
IP Network Connecting Protocols 10/100 Ethernet, Telephone Line ( External Modem ) TCP IP ARP ICMP HTTP/HTTPS Telnet DHCP/BOOTP PPP; SMTP DNS NTP; Dynamic DNS
Weights 15 KGS
Options 6 /  10/  17 feet cable  ( USB or PS/2 +VGA)



  1. KVM-6508I-19 ( = KVM-6500-19 + KVM-108I )
  2. 110V~240V AC / DC 12V 4A  Power Adapter *1
  3. 19" Rackmount kit *1
