RS-232 Surge Protector

Model No：RSP1000
SUNIX RS-232 Surge Protector prevent damage to your electrical equipment from power surges and spikes. It contains avalanche diodes, one for each line. All diodes are returned to a ground stud, theProtector built-in PTC thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power can not reach your equipment.
  • Features & Spec.

FEATURES

  • Prevent your RS-232 electrical equipment from power surges and spikes
  • Extremely sensitive avalanche-diode technology
  • Each RS-232 data signal line built-in 600 Watt Peak Surge protectors
  • Maximum peal pulse current up to 14 amps / per line.
  • Maximum clamping voltage up to 42 voltages / per line
  • Response time is less than 1.0 ns
  • Absolute network reliability

SPECIFICATIONS

Model no. RSP1000
Interface RS-232
Connectors 1*DB9 male , 1*DB9 female
NM Surge Response Time 1 ns
Peal Pulse Current 14Amps / per line (Max.)
Clamping Voltage 42V / per line (Max.)

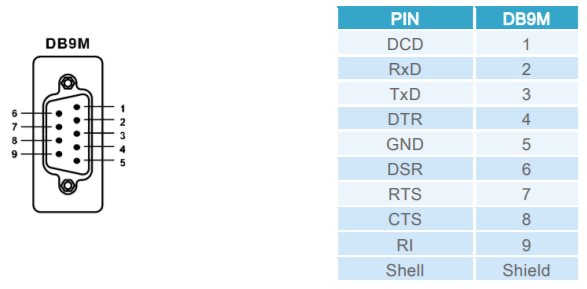

Data Lines Protected RS-232 Signal
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Casing ABS

Environment

 Operating Temp : 0~60℃;
Storage Temp : -20 to 85℃
Humidity: -5~ 90% RH non-condensing
Dimension 75 (W) x 40 (D) x 22 (H) mm
Ground Wire Cable Length 600mm / 2 ft
Approvals RoHS, CE, FCC ClassB
