Meter PDU

Model No：SPM-2012-08F
This 8 outlets PDU with LCD display Meter, 20 Amp capacity。 The PDU meter displays various power information including input voltage, total load current, frequency, power factor, VA and kWh
  • Features & Spec.
  • Diagram
  • Video

Features

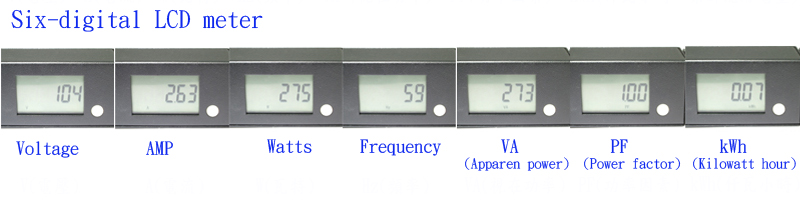

  • Equiped with a 6-digital LCD meter (True RMS)，reading informaton inclucing: V (Voltage)、A (AMP)、W (Watts )、Hz(Frequency)、VA (Apparen power)、PF (Power factor)、kWh (Kilowatt hour)
  • Surge Protect:  6,500A and 1012Joule
  • Recoverable 20A overload protection device (One 20 Amp. circuit breaker)
  • Anti-shedding power plug hook，effectively prevent the power cord from falling off
  • Adopts UL compliance components including  power plug、outlet and circuit breaker
  • LCD meter designed with backlight display function
  • Easy to install in a 19”cabinet，whether horizontal  1u or vertical 0u is possible

Specification

Specification SPM-2012-08F
Interface
AC Out (8) NEMA 5-15R
AC In (1) NEMA 5-15P  with 300cm AC power cord (UL SJT#14AWG )
Electricity
Workig Voltage 110V AC， +-15%
Frequence 50~60Hz， +-15%
AMP max. 20 Amp
Load Protect 20 Amp Circuit breaker*1pcs
LCD Meter 6 digitals
Voltage display Range: 80 ~260V ±2％
AMP display Range: 0 ~ 20A  ±2％ ( <50mA = 0mA)
Power consumption：< 1W
Fresh time： about 1 sec.
Working temperature: -10 ~ 60C˚
Size 435 x 40x 43 mm ( WDH)
Weight 1.4 kg
