USB KVM Swtich
Model No：SK271B
2 port VGA+USB KVM switch that help you control 2 computers using only one set of USB keyboard、mouse and VGA monitor display. Made in Taiwan
- Features & Spec.

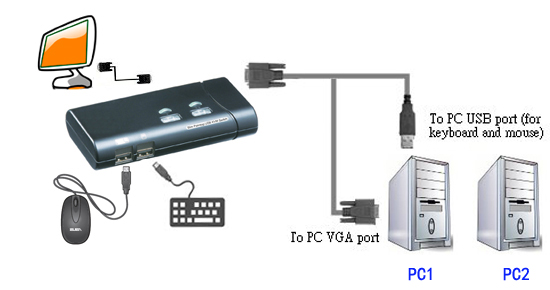

- Diagram
- Packages
- PDF
Features:
- 2-port Slim Palmtop USB KVM Switch
- True Transparent USB (TTU) Emulation technology with an integrated ASIC
- Full driver support for all types of USB keyboard and mouse
- All time DDC emulation for video compatibility and stability under intensive switching
- Multi-platform support PCs and Macintosh
- Support all major operating systems such as Windows, Linux, Macintosh, Sun OS, etc.
- LED indicators for easy status monitoring
- Integrated HDB15 connector for computer connection
- Channel selection by push buttons and keyboard hotkeys
- Low power consumption using ASIC
- Analog video resolution up to 2048 x 1536
Specifications
| Model no. | SK271B |
| Computers | 2 |
| Console Connections | 1 |
| PC Port Connectors | 2 x HDB 15-pin female (integrated with KBD+Mouse+VGA interface) |
| Console Port Connectors | 1 x USB Keyboard female |
| 1 x USB Keyboard female | |
| 1x HDB 15-pin female | |
| PC selection | 2 x Push buttons、 Hot-keys |
| PC port LED | 2 (Green) |
| VGA Resolution | 2048 x 1536 |
| Power Type | USB Bus powered ( DC spare power jack) |
| Housing | Plastic |
| Dimension (L x W x H) | 132*67*28 mm |
| Safety / Emission | FCC, CE |
- SK271B
- 1.2M USB + VGA*2
- User manual
SK271B
Data Sheet
