USB to RS232 Converter

Model No:USC-232P/8
The USC-232P/8 provides an extra connection for RS-232 devices via any available USB port from any PC or Laptop Computers. It is compact, portable, and perfect for users who are always working with serial devices like PDA, Digital Camera, Modem, Cellular Phone, ISDN Terminal Adaptor, and etc. Supports Win 10 O/S
  • Features & Spec.

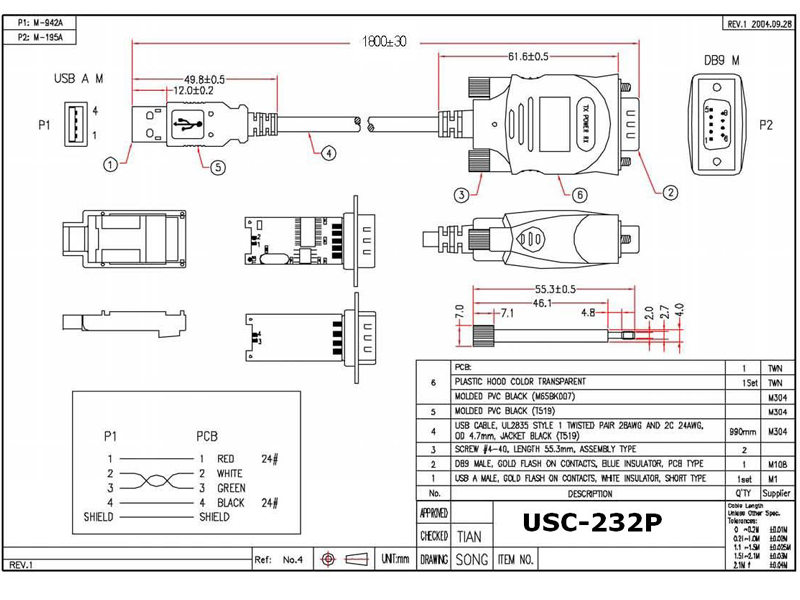

  • Diagram

Features

  • One port USB to RS232 converter
  • Fully compliant with USB1.1 and compatible with USB 2.0 & 3.0 (12Mbps max.) specification
  • Built in Taiwan Prolific chipset
  • Provides one (1) DB-9 Male Serial Port for Device Connection
  • Supports Data Transfer Rate of 230kbps
  • Supports Remote Wake-Up and Power Management
  • Supports Hot-Swapping for a Quick Switch in Serial Devices without Shutting Down your PC
  • Supports Bus Powered Mode
  • Supports O/S : Win2008(32 & 64 bit) ,Win7、Win8.1(32 & 64 bit) & Win10、Linux & MacOS8.6 later

Specifications

Model no. USC-232P/8
Chips PROLIFIC
USB Compliant USB1.1 spec.
USB1.1 Speed 12Mbps max.
RS232 Speed 230Kbps max.
LEDs TX,RX,Power
Connectors Upstream USB- A Male
Device DB-9 Male
Power Mode Bus,DC5V
Weight 75g  ( Net, without package )
Cable 6 feet (180cm)
