VGA Splitter

Model No：VS-114A
VS-114A Video Duplicator helps boost and duplicates signals from a single source and broadcasts the same signals to 4 monitors， using the analog signals from a distance of up to 210 feet
  • Features & Spec.

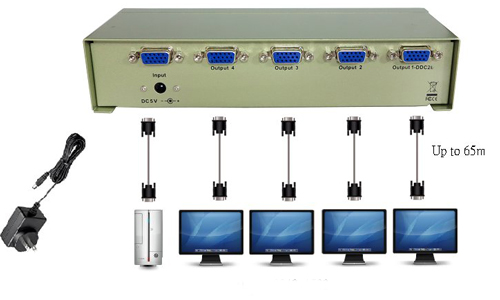

  • Diagram
  • Packages
  • PDF

Features

  • One video input with 4 video outputs
  • Transmission distance of 210 feet
  • Suitable for SVGA, VGA, XGA,QXGA and Multi-sync monitors
  • Daisy-chain multiple units together for even more outputs
  • Supports 450 MHz video bandwidth
  • Supports Video resolution 2048 x 1536
  • Compact and unique design

Specifications

Model no. VS-114A
VGA Outputs 4
Resolution 2048*1536 max.
Bandwidth 450MHz ( -3db)
Size 198*72*42 mm
Case Material Metal
Connector HDB-15 Female x 5 ( 1*input + 4*output)
Power Source DC5V/ 1.0A




  1. VS-114A
  2. DC 5V 1A Power adapter x 1pcs
  3. User manual
