VGA Matrix Switch
Model No：VSW-0202
VSW-0202 video inputs from 2 computers on 2 monitor or projector with Audio function support. VSW-0202 is especially euipped with IR remote controller to control this VGA switch by 20 feet away
- Features & Spec.

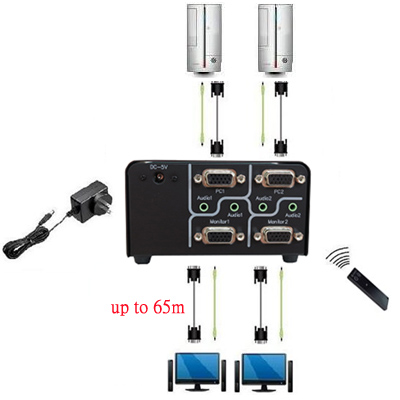

- Diagram
- PDF
Features
- Display video input from 2 computers on 2 monitors or projectors
- Supports Audio switch function
- PC selection via push buttons or IR remote control
- IR remote control allows user to switch outputs from up to 20 feet away
- Support Daisy-chain to expand the number of computers connection up to 3 layers
- Enhance video signal enhancement allows monitor to be placed up to 210 feet away
- Supports video resolutions up to 2048x1536
- Suitable for VGA, SVGA, XGA, SXGA, UXGA, and Multisync monitors
Specifications
| Model no. | VSW-0202 | |
| PCs Connected | 2 | |
| PC Selection | Push Button or IR Remote Control | |
| LEDs Indication | PC selection ( Green) | |
| PC online ( Green) | ||
| PC connector ports | Video | 2 x HDB-15 female |
| Speaker | 2 x Stereo speakerØ3.5mm jack | |
| Console Ports | Video | 2 x HDB-15 female |
| Speaker | 2 x Stereo speaker Ø3.5mm jack | |
| DDC, DDC2 monitor | Yes | |
| VGA Bandwidth | 450 MHz | |
| VGA Resolution | 2048x1536 @85Hz | |
| Audio Frequency Respond | 20Hz ~ 30 KHz | |
| Power Source | DC 5V 1A | |
| Size (L X W X H)mm | 178*90*65mm | |
| Weight | 670g | |
