HEMI Cat5 Extender

Model No：VHE-030
The VHE-030 HDMI Extender extends your HDMI display up to 100ft(30m) away from your HDMI source using one Cat5e cable
  • Features & Spec.

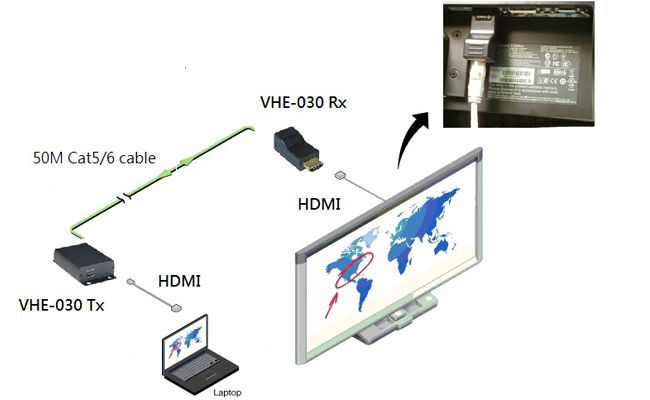

  • Diagram
  • Related Products

Features

  • Passive type, no external power required
  • Used in pairs via one CAT5/5e/6 cable to send HDMI signal
  • Supports HDMI 1.3 spec
  • Transmission range up to 50M at 1080i, 30M at 1080p resolution

Specifications

Model no.
VHE-030
Item no.
VHE-030L
VHE-030R
HDMI Spec. HDMI 1.3
Resolution 480i/p, 720p, 1080i/p @24/50/60Hz
Distance 50M @1080i  ~  30M @1080p
HDMI Connector HDMI-19 pin Female HDMI-19 pin Male
Device to Device RJ-45 Shielded x 1
Power Source 5V DC 2.0A *1 None



Functions
 VHE-052 VHE-050 VHE-070I VHE-100IR
Distance (max.) 50M (1080i)  30M (1080p) 50M (1080p)
70M(1080i) 50M(1080p)
 60M ~70M
100M (1080p)
 100M (1080p)
HDMI Spec.
HDMI 1.3
 HDMI 1.3
HDMI 1.3
 HDMI 1.4
HDMI 1.4
 HDMI 1.4
Support 3D None None None 3D 3D 3D
HDCP
◎
 ◎
◎
 ◎
◎
 ◎
Local Port None HDMI *1 None None None None
Advance Feature
None
None
None
 IR
None
RS232+IR
