HDMI Cat5 Extender

Model No：VHE-050
The VHE-050 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV display up to 60 meters at 1080i and 50 meters at 1080p. It is equipped with HDMI connectors and also supports DVI equipment with allowing used with a HDMI to DVI adapter.
  • Features & Spec.

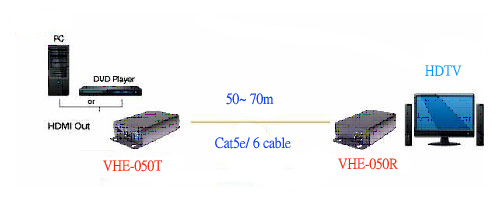

  • Diagram
  • Related Products

Features

  • Extends HDMI signal over one CAT5/5e/6 cables
  • HDMI 1.3 compliant
  • Transmission range up to 50 meters at 1080p resolution
  • Transmitter unit built in EDID backup function
  • No external power requested at receiver unit under distance 40 meters
  • HDCP compliant

Specifications

Model no.
                                      VHE-050
Spec.
        VHE-070I TX
         VHE-070I RX
HDMI Spec. HDMI 1.3
Video Resolution
           480i/p, 720p, 1080i/p @24/50/60Hz
Distance
         Cat5e 70M @1080i, Cat5e 50M @1080p
HDMI Connectors HDMI-19 pin Female HDMI-19 pin Male
Devices to Devices Ports 1x RJ-45 Shielded 1x RJ-45 Shielded
Power Souce 1x DC5V 2.0A 1x DC5V 2.0A
Power Consumption 1200mA (Max) 700mA (Max)
Environments Operation: 0 to 55°C,  Storage: -20 to 85°C
Weight 180g 170g
Size 120*67*67 (mm) 120*67*67 (mm)



Functions
 VHE-052 VHE-050 VHE-070I VHE-100IR
Distance (max.) 50M (1080i)  30M (1080p) 50M (1080p)
70M(1080i) 50M(1080p)
 60M ~70M
100M (1080p)
 100M (1080p)
HDMI Spec.
HDMI 1.3
 HDMI 1.3
HDMI 1.3
 HDMI 1.4
HDMI 1.4
 HDMI 1.4
Support 3D None None None 3D 3D 3D
HDCP
◎
 ◎
◎
 ◎
◎
 ◎
Local Port None HDMI *1 None None None None
Advance Feature
None
None
None
 IR
None
RS232+IR
