HDMI Cat5 Extender

Model No：VHE-070I
VHE-070I HDMI CAT5 Extender is using only one cost effective CAT5e/6 cable to extend your HDTV display up to 60 meters at 1080p, 70 meters by CAT6 cable.
  • Features & Spec.

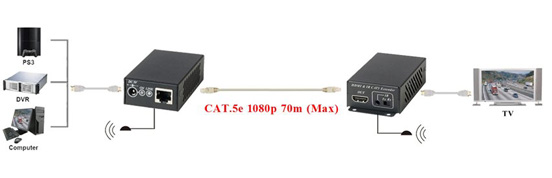

  • Diagram
  • Related Products

Features

  • Extends HDMI and IR signal over one CAT5/5e/6 cable
  • Uncompressed high definition video up to 1080p@60Hz@48bits and 3D and 4K*2K capable
  • Built in IR control, IR signal could be selectable at either TX/RX side
  • Max. Data Rate- 10.2Gbps
  • HDMI 1.4 and HDCP compliance
  • Transmission range up to 60M by CAT5e/6, 70M by CAT6a cable at 1080p@60Hz@24bit
  • Audio support up to LPCM7.1 , Dolby TrueHD , DTS-HD MA

Specifications

Model no.
VHE-070I
Item no.
VHE-070I TX
VHE-070I RX
HDMI Spec. HDMI 1.4
Resolution Up to 1080p / 60Hz / 48 bit
Distance 60M by CAT5e/6, 70M by CAT6a
HDMI Connector HDMI-19 pin Female HDMI-19 pin Male
IR Receive Angle +- 30 +- 55
IR Carrier Frequency 30-60Khz
IR Distance 5 meter
Device to Device 1x RJ-45 Shielded 1x RJ-45 Shielded
Power Source 1x DC5V 2.0A 1x DC5V 2.0A
Power Consumption 380mA (Max) 820mA (Max)
Environment Operation: 0 to 55°C,  Storage: -20 to 85°C
Size 49.2*92*25 (mm)



Functions
 VHE-052 VHE-050 VHE-070I VHE-100IR
Distance (max.) 50M (1080i)  30M (1080p) 50M (1080p)
70M(1080i) 50M(1080p)
 60M ~70M
100M (1080p)
 100M (1080p)
HDMI Spec.
HDMI 1.3
 HDMI 1.3
HDMI 1.3
 HDMI 1.4
HDMI 1.4
 HDMI 1.4
Support 3D None None None 3D 3D 3D
HDCP
◎
 ◎
◎
 ◎
◎
 ◎
Local Port None HDMI *1 None None None None
Advance Feature
None
None
None
 IR
None
RS232+IR
