HDMI Cat5 Extender

Model No：VHE-100
VHE-100 HDMI Extra Long Range CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV display up to 100 meters at 1080p.
  • Features & Spec.

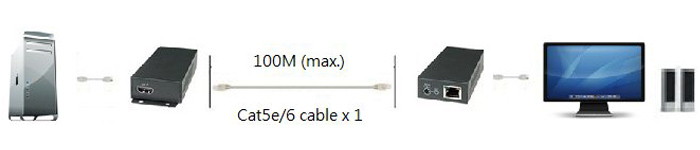

  • Diagram
  • PDF
  • Related Products

Features

  • Extends HDMI Signal over one CAT5/5e/6 cable
  • Uncompressed high definition video up to 1080p@60Hz@48bits
  • Transmission range up to 100 meters at 1080p resolution
  • HDMI 1.4， 3D capable and HDCP compliance
  • Max. Data Rate- 10.2Gbps


Specifications

Model no.
                                      VHE-100
Item no.
VHE-100 TX
VHE-100 RX
HDMI Spec. HDMI 1.4
Resolution Up to 1080p / 60Hz / 48 bit
Connect Distance 100M (Max)
HDMI Connector HDMI-19 pin Female HDMI-19 pin Male
Data Rates 10.2Gbps
Device to Device 1x RJ-45 Shielded 1x RJ-45 Shielded
Power Supply 1x DC5V 2.0A 1x DC5V 2.0A
Power Consumption 600mA (Max) 1200mA (Max)
Environment Operation: 0 to 55°C,  Storage: -20 to 85°C
Size 49.2*92*25  (mm)



VHE-100

Data Sheet
Functions
 VHE-052 VHE-050 VHE-070I VHE-100IR
Distance (max.) 50M (1080i)  30M (1080p) 50M (1080p)
70M(1080i) 50M(1080p)
 60M ~70M
100M (1080p)
 100M (1080p)
HDMI Spec.
HDMI 1.3
 HDMI 1.3
HDMI 1.3
 HDMI 1.4
HDMI 1.4
 HDMI 1.4
Support 3D None None None 3D 3D 3D
HDCP
◎
 ◎
◎
 ◎
◎
 ◎
Local Port None HDMI *1 None None None None
Advance Feature
None
None
None
 IR
None
RS232+IR
