HDMI Cat5 Extender

Model No：VHE-100IR
VHE-100IR HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV display up to 100 meters at 1080p。 With Bi-directional RS232 and IR function to delivers significant value to the entire home and commercial entertainment system。
  • Features & Spec.

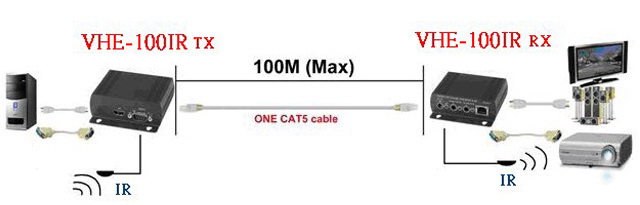

  • Diagram
  • Related Products

Features

  • Extends HDMI with control signal over one CAT5e/6 cables
  • Controls signals including RS232 and IR remote control
  • Uncompressed high definition video up to 1080p@60Hz@48bits and 3D
  • Max. Data Rate- 10.2 Gbps
  • HDMI 1.3 and HDCP compliance
  • Bi-Directional IR function
  • Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing status requests and control of the destination unit
  • Audio transmission support Dolby TrueHD, DTS-HD MA
  • Transmission range up to 100 meters at 1080p resolution


Specifications

Model no.
                                 VHE-100IR
Item no.
VHE-100IR TX
VHE-100IR RX
HDMI Spec. HDMI 1.4
Resolution Up to 1080p / 60Hz / 48 bit
Connect Distance 100M (Max)
HDMI Connector HDMI-19 pin Female HDMI-19 pin Male
RS-232 Baud Rate Up to 115200 bps / Full Duplex
RS-232 Connector DB9 Female DB9 Male
IR Receive Angle +- 10
IR Carrier Frequency 38Khz
IR Distance 5 meter
Device to Device 1x RJ-45 Shielded 1x RJ-45 Shielded
Power Supply 1x DC5V 2.0A 1x DC5V 2.0A
Power Consumption 600mA (Max) 1200mA (Max)
Environment Operation: 0 to 55°C,  Storage: -20 to 85°C
Size 130 x 88 x30 (mm)



Functions
 VHE-052 VHE-050 VHE-070I VHE-100IR
Distance (max.) 50M (1080i)  30M (1080p) 50M (1080p)
70M(1080i) 50M(1080p)
 60M ~70M
100M (1080p)
 100M (1080p)
HDMI Spec.
HDMI 1.3
 HDMI 1.3
HDMI 1.3
 HDMI 1.4
HDMI 1.4
 HDMI 1.4
Support 3D None None None 3D 3D 3D
HDCP
◎
 ◎
◎
 ◎
◎
 ◎
Local Port None HDMI *1 None None None None
Advance Feature
None
None
None
 IR
None
RS232+IR
