VGA Switch

Model No：VSW-261B
VSW-261B AV Switch inputs from 2 computers to a single monitor or projector。 There are four ways to switch between two computers。 No driver needed or software required when in operation
  • Features & Spec.

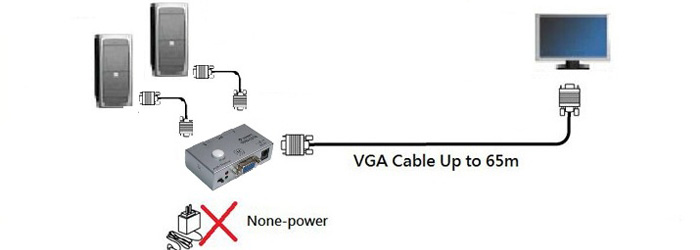

  • Diagram
  • Packages

Features

  • Displays on a single monitor or projector from  two computers
  • PC selection in 4-ways
  • Manual mode : Manual switch for port selection
  • Auto Skip mode: detects a PC in sleeping and switches the video output to another PC
  • Priority mode: auto detects PC1 in priority and switches to video output
  • Auto Scan mode: autoscans and outputs the two sources in sequence ( 5sec.~5min.)
  • A slide switch for port selection in Manual or Priority mode
  • Long distance transmission up to 210 feet ( 65 meters )
  • Superior video quality – up to 2048 x 1536 (450MHz)
  • Supports VGA, XGA. SVGA, UXGA and multisync monitors

Specifciations

Model no. VSW-261B
VGA Input 2* HD15Fmale
VGA Output 1* HD15Female
PC Selections Manual、Auto-Scan、Auto-Skip、Priority ( PC1 > PC2 )
Distance 210feet ( 65 meters)
AutoScan Period 5 sec. ~ 5 minutes (by Push Button Switch)
Resolution 2048*1536 / max.
Band Width（MHz） 450MHz / max.
Power Consumption 20mA
Size (W*D*H) 70*60*23/ mm
Power Adapter DC5V Power Adapter



  1. VSW-261B
  2. DC Power Adapter
  3. User manual
