USB 1.1 Cat5 Extender
Model No：UE-101
UE-101 can help remove the distance barrier between your PC and any USB-enabled peripheral devices which are located at a distance exceeding up to 50 meters away. By using technology of Cat.5 / 5e / 6 cable, distance is no longer a problem to hinder the inter-workability in your computing communication world.
- Features & Spec.

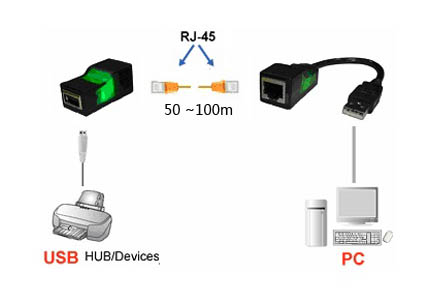

- Diagram
Features
- Extend USB peripherals devices up to 100 meters for low-speed and 50 meters for full-speed
- Ideal for keyboard、mouse、multi-touch monitors、whiteboards、webcams etc.
- Compliant with USB 2.0 & 1.1 specification
- Low cost and high performance Cat.5 / 5e / 6 network cable applied
- Embedded USB transceivers in both Master and Remote units to secure the transmitting quality
- One LED on each end to indicate the extender is power on
- Bus-powered - no external power supply required for local or remote unit
- No driver installation is required
Specifications
| Model no. | UE-101 | ||
| Interface | Local Device | Upstream | 1 x USB Type A male |
| Downstream | 1 x RJ-45 female | ||
|
Remote Device |
Upstream | 1 x USB Type A female | |
| Downstream | 1 x RJ-45 female | ||
| Connector Local Upstream | 15 cm USB cable with USB Type A Male | ||
| Connection Cable | Cat5/5e/6 UTP/FTP/STP | ||
| Distance | 164~330ft ( 50~100m) | ||
| Power | Bus Power | ||
| LED | *2 pcs | ||
| Environment | Operation | 0~40°C | |
| Stroge | -40~85°C | ||
