USB to RS-232 Adapter

Model No：USC-102F
USC-102F provides 2 extra connection for RS-232 devices via any available USB port from any PC or Laptop Computers. It is compact, portable, and perfect for users who are always working with serial devices like PDA, Digital Camera, Modem, Cellular Phone, ISDN Terminal Adaptor, and etc.
  • Features & Spec.

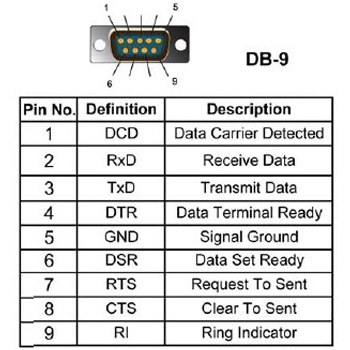

  • Diagram
  • PDF

Features

  • Fully Compliant with USB Specification 1.1
  • Fully supports the standard RS-232C spec.
  • Provides up to two (2) DB-9 Male Serial Port for Device Connection
  • Supports Data Transfer Rate of  230kbps
  • Supports Remote Wake-Up and Power Management
  • Supports Hot-Swapping for a Quick Switch in Serial Devices without Shutting Down your PC
  • Supports Bus Powered Mode
  • Supports O/S :Windows 98 / Me / 2000 / XP / Vista / 7 (32&64bit) / 8(32&64bit) / 2003 / 2008 / 2008R2
     WinCE : V4.2 ~ V7.0
     Mac OS : 8.x / 9.x / 10.x
     Linux : Kernel 1.5.0 or above
  • Supports  Windows embedded  (by win 8 driver)，includes Windows Embedded Compact、Windows Embedded Enterprise、Windows Embedded Standard and Windows Embedded POSReady

Specifications

Model no. USC-102F
CHIP FTDI
USB SPEED 12/ 1.5Mbps
SELECT AUTO
RS232 SPEED 230kbps
CONNECTOR DB-9M *2
POWER BUS Power
CABLE 0.6M



USC-102F

User manual
