HDMI CAT5 extender

Model No:VHE-050WI
VHE-050WI Wall Plate HDMI CAT5 extender is designed to use two low cost CAT5E cable to extend HDTV sources from DVD players, Blu-ray Disc player or PS3...etc
  • Features & Spec.

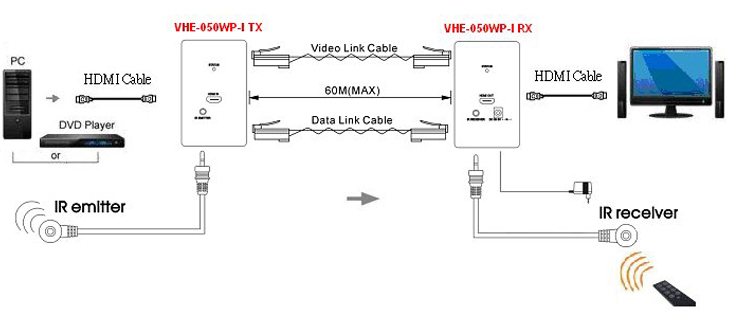

  • Diagram
  • Packages
  • PDF

Features

  • Extends HDMI signal over two CAT5/5e/6 cables
  • Transmission range up to 40 meters (1080P)
  • Support high resolution up to 1080p
  • Support IR remote control function
  • Built in auto EQ function, no need to do any adjustment for different range
  • Fully HDCP compliant
  • HDMI 1.3a compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect
  • Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack

Specifications

Model no.
                                VHE-050WI
Specifications
VHE-050WP TX
VHE-050WP RX
HDMI Spec. HDMI 1.3
Resolution 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Link Cable Distance

CAT5E 50M@1080i ,  CAT5E 40M @1080p

HDMI Connector HDMI-19 pin Female HDMI-19 pin Male
IR Cable 1.8公尺
Device to Device 2 x RJ-45 Shielded 2 x RJ-45 Shielded
Power Supply None 1x DC5V 1.0A
Power Consumption   500mA (Max)
Environments Operation: 0 to 55°C,  Storage: -20 to 85°C
Size 70W x 32H x 115D.mm



  1. Transmitter x1
  2. Receiverx1
  3. External power adapter x1
  4. User manual

VHE-050WI

User manual
