Video to VGA Converter
Model No：VC100CVH
High Resolution Video to VGA Converter with HDMI output
- Features & Spec.

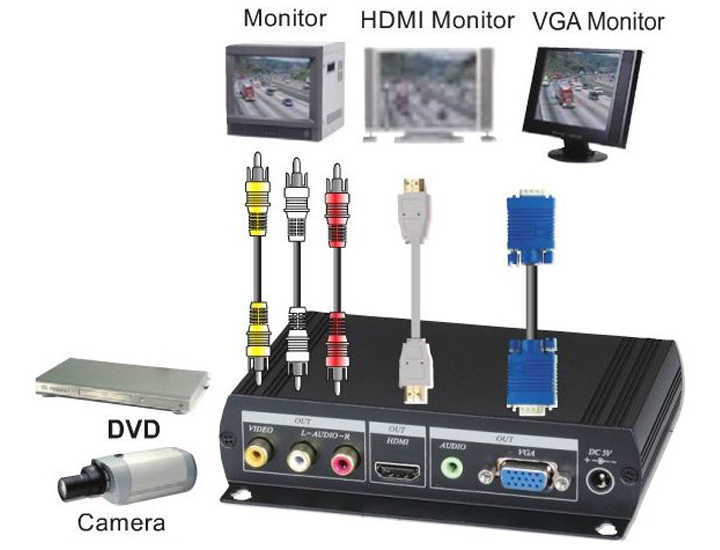

- Diagram
- PDF
Features
- Special designed for computer VGA/ HDMI monitor, LCD color monitor
- Input: composite video input via RCA, Output: Video(CVBS), VGA ,HDMI output
- Support NTSC, PAL video system
- Input video system 50 to 60Hz frame rate detection (NTSC/PAL)
- Support VGA, HDMI resolution: 800x600、1024x768、1280x720、1920x1080@60Hz
- Support HDMI output: 720P、1080I、1080P
- Built in stereo audio input and output
- Any adjustment will be auto memory
- Frequency output: 60Hz, 75Hz, 85Hz
- On screen display function: Resolution、Brightness、Contrast、Saturation、Hue
Specifications
| Model no. | VC100CVH |
| Input Interface | Composite Video x 1 |
| Output Interface | Composite Video x 1、VGA x 1、HDMI x 1 |
| Audio | RCA In /Out x 4，3.5mm Phone Jack x 1 |
| Resolution | 1920 x 1080 @ 60Hz / max. |
| Functions | Resolutions、Brightness、Contrast、Saturation、Hue |
| Power Adapter | DC 5V 2A |
| Environments | Working Temperature：0～55℃ |
| Size | 140 x 110.8 x 32mm |
VC100CVH
User Manual
