Products> Video Products > VGA

VGA Splitter

Model No:VS-112
VS-112 Video Duplicator helps boost and duplicate signals from a single source and broadcasts the same signals to 2 monitors from a distance of up to 210 feet (65 meters)
  • Features & Spec.

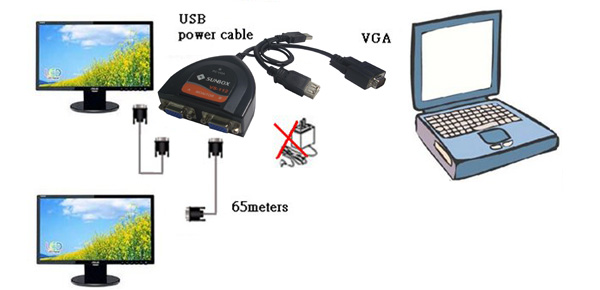

  • Diagram
  • PDF

Features

  • One video input with 2 video outputs
  • Transmission distance of 210 feet
  • Daisy-chain multiple units together for even more outputs
  • Supports 450 MHz video bandwidth
  • Supports Video resolution 2048 x 1536
  • Compact and unique design

Specifications

Model no. VS-112
VGA Output 2
Resolution 2048*1536 max.
Bandwidth 450MHz
Size 70*70*20 mm
Case Material ABS Plastic ( black color )
Cable to PC 30cm HDB-15M ( Input )
Connector HDB-15 Female x2 ( Output )



VS-112

Brochure
